First of all, the basic functions of FX3U series PLC have been greatly improved.
1.CPU processing speed has reached 0.065us/ basic instructions.
2. a large capacity RAM memory with up to 64K steps is built.
3. through the expansion of CC-Link network, it can achieve up to 384 points of control.
4. substantially increased the number of internal soft components.
Secondly, FX3U series PLC integrates several leading functions.
1. The basic unit of the transistor output type has built-in three-axis independently up to 100kHz positioning function, and has added new positioning instructions: DOG-searched origin regression (DSZR), interrupt single-speed positioning (DVIT) and table setting positioning (TBL), thus making the positioning control function more powerful and more convenient to use.
2. built in 6 points and 100kHz's high-speed counting function.
Finally, FX3U series PLC also enhanced the following functions.
1. FX3U series specially enhances the communication function, its built-in programming port can reach 115.2 Kbps high-speed communication, and can use up to three communication ports (including programming ports).
2. FX3U series adds high-speed input and output adapters, analog input and output adapters and temperature input adapters, these adapters do not occupy system points, easy to use. The high-speed output adapter can realize the positioning control of up to 4 axes and up to 200 kHz, and the high-speed count of up to 200 kHz can be achieved by using the high-speed input adapter.

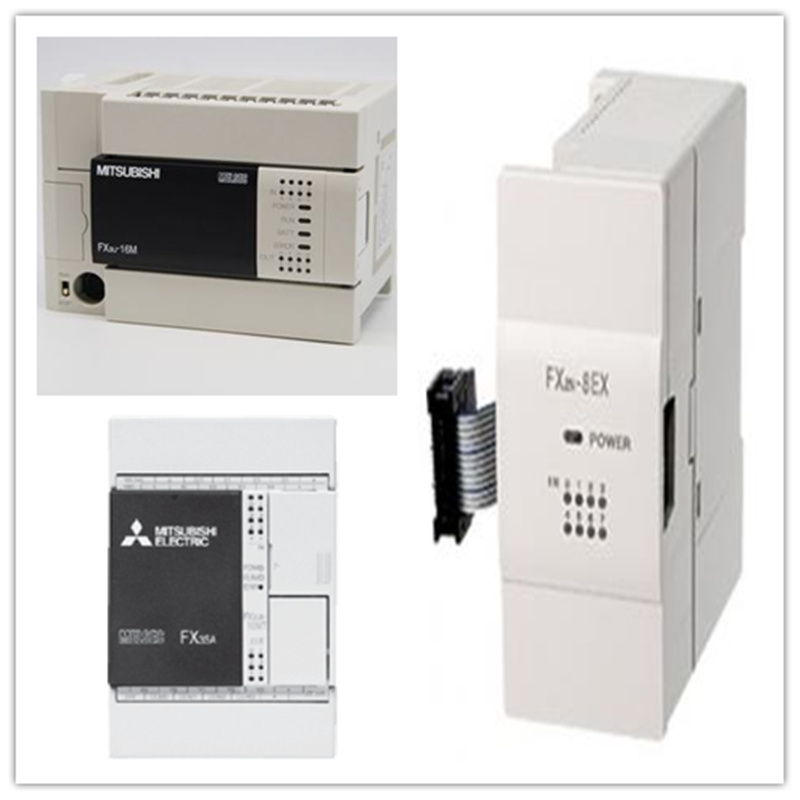

FX3U-80MT/ES-A basic unit, built-in 40 input /40 out (transistor), AC power price 7180
Control scale: 40 point input, 40 point output, and can be extended to 128 points. With two input potentiometers, 8000 step storage capacity, and can be connected to a variety of expansion modules, special functional modules. The transistor host unit can output 2 point 100KHz pulses at the same time. It is equipped with seven special locating instructions, including zero return, absolute or relative address expression and special pulse output control. The display module FX1N-5DM can be installed to monitor and edit timers, counters and data registers. Network and data communication function: support 232485422 communication. Through FX2N-16CCL and FX2N-32CCL, it can act as CC-LINK master station or slave station.
MITSUBISHI PLC quotation sheet -FX3U series, MITSUBISHI PLC quotation sheet -FX3U series, MITSUBISHI PLC quotation sheet -FX3U series
